Industrial Capacity, Compact Portability, Universal Applications...

Product Performance and Impact

 HydroVolt is designed to adapt to the user...

Our equipment is designed to deliver a powerful tool for disaster relief and primary potable water. We prioritize user-friendliness, ensuring intuitive operation and rapid deployment. With accessible replacement parts in various countries, maintenance and repairs are streamlined to minimize downtime. Furthermore, we continuously improve the design, incorporating feedback and technological advancements. The HydroVolt product line represents reliable, user-friendly equipment that supports water access in critical situations.

...and is made to deploy anywhere.

HydroVolt Features

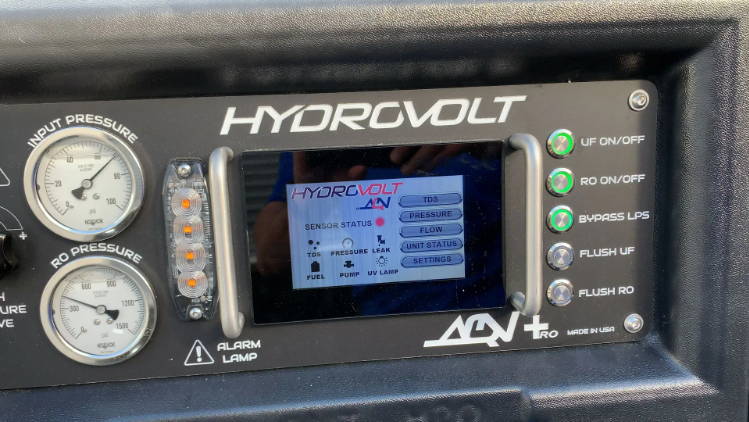

HydroVolt AQN, Water purification solutions for city disaster response teams
HydroVolt

Portability

Modular design and customized components make the HydroVolt line ultra-compact and easy to repair

HydroVolt

Single person to a rural village

There is a HydroVolt unit to match the needs of every user. The units adapt to the water source.



HydroVolt

Rugged capabilities

Marine-grade components and uncompromising quality ensure rugged operation

HydroVolt

Easiest to setup, use and pack away

You’ll find that our platform is easy to set up, operate, and transport within minutes.

HydroVolt Overview

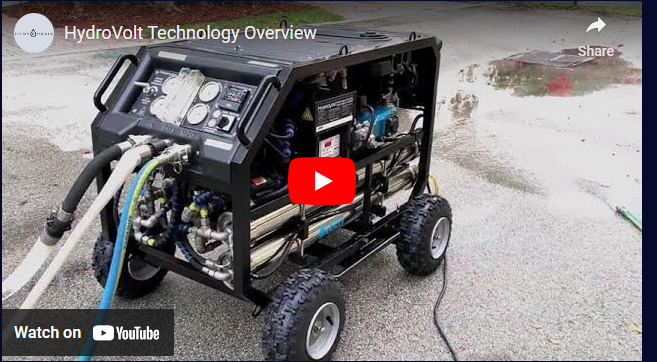

HydroVolt emergeency water filtration technology Overview Video

SQN (Sine Qua Non)

Latin for "the essential element"

The HydroVolt SQN is a miniature desalination plant


Remote Telemetry, redundant gauges, and manual override


Range to Water Source:                                 100 yard run, 30 yard head

Weight and Dimensions:                                585 lbs./ L52 x W38 x H35 in.

Fresh Water Filtration Capability:                   6,000 GPD

Fresh Water Reverse Osmosis Capability:    4,000 GPD

Seawater Desalination Capability:                 2,500 GPD


4 Modes of Operation:

1- Generator Mode: 6 kW @220V 50 Hz. Serves as s standard generator

2- Pump Only Mode: Pump water 100 ft. vertical head 10 GPM

3- Filtration Only Mode: Sediment filtration, carbon block, UV disinfection

4- Desalination/RO Mode: Sediment Filtration, carbon block, UV disinfection and full desalination up to 40,000 PPM of Total Dissolved Solids (TDS)


Aqua-Guardian (AQN)

The HydroVolt AQN

   Remote Telemetry, redundant gauges, and manual override


Range to Water Source:                                100 yard run, 30 yard head
Weight and Dimensions:                                294 lbs./ L52 x W38 x H35 in.

Fresh Water Filtration Capability:                  4,000 GPD

Fresh Water Reverse Osmosis Capability:    2,000 GPD

Seawater Desalination Capability:                 800 GPD


4 Modes of Operation:

1- Generator Mode: 4.2 kW @220V 50 Hz. Serves as s standard generator

2- Pump Only Mode: Pump water 100 ft. vertical head 10 GPM

3- Filtration Only Mode: Sediment filtration, carbon, ultrafiltration (.01 micron), LED-UV disinfection

4-Desalination/RO Mode: Sediment Filtration, carbon, ultra filtration (.01 micron) LED-UV disinfection and full desalination up to 40,000 PPM of Total Dissolved Solids (TDS)


AquaShield (AQS)

The HydroVolt AquaShield AQS


Range to Water Source:                                25 foot run, 25 foot head

Weight and Dimensions:                               45 lbs./ L 33 x W 19 x H 11 in.

Fresh Water Ultra-Filtration Capability:         1,000 GPD

Fresh Water Reverse Osmosis Capability:   500 GPD


3 Modes of Operation:

1- Pump Only Mode: Pump water 75 ft. vertical head 2.5 GPM

2- Filtration Only Mode: Sediment filtration, carbon , ultrafiltration (.01 micron), LED-UV disinfection

3-Reverse Osmosis Mode: Sediment Filtration, carbon, ultra filtration (.02 micron) LED-UV disinfection and Reverse Osmosis of all fresh water sources
